About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
From the supplier

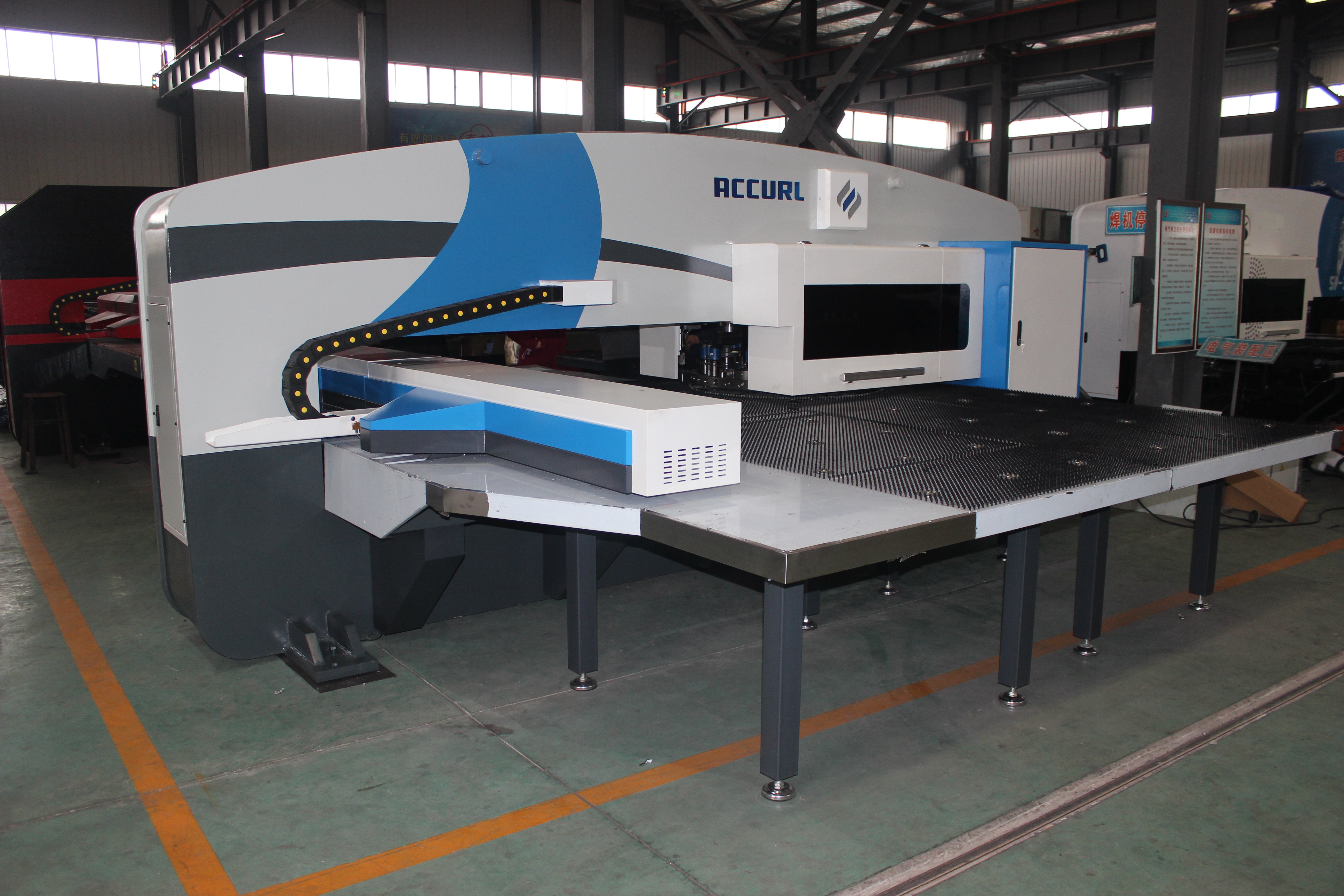

ACCURL Servo CNC Turret Punch Press MAX-SF-30 ton with FANUC Series Oi-PO CNC Control System
MAX SF Series for
The Perfect CNC Turret Punching Machine
ACCURL®MAX-SF Series CNC Punch Press Machine is the newly developed Multi Index Tools Turret Punch Press equipped with advanced Servo Hydraulic System, introduced by Tailift’s professional R&D and production teams who have been dedicated to machineries for decades. Accurl MAX SF Series CNC Punching machines provides the fastest, flexible and reliable punch press satisfying your expectation of fast and precise sheet metal works.
Advanced Servo System:
●Advanced CNC Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
●To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
●Uniquely designed Machine structure ensures less preventive maintenance
Standard Equipments :
●Accurl Direct Drive servo punch system
●Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors

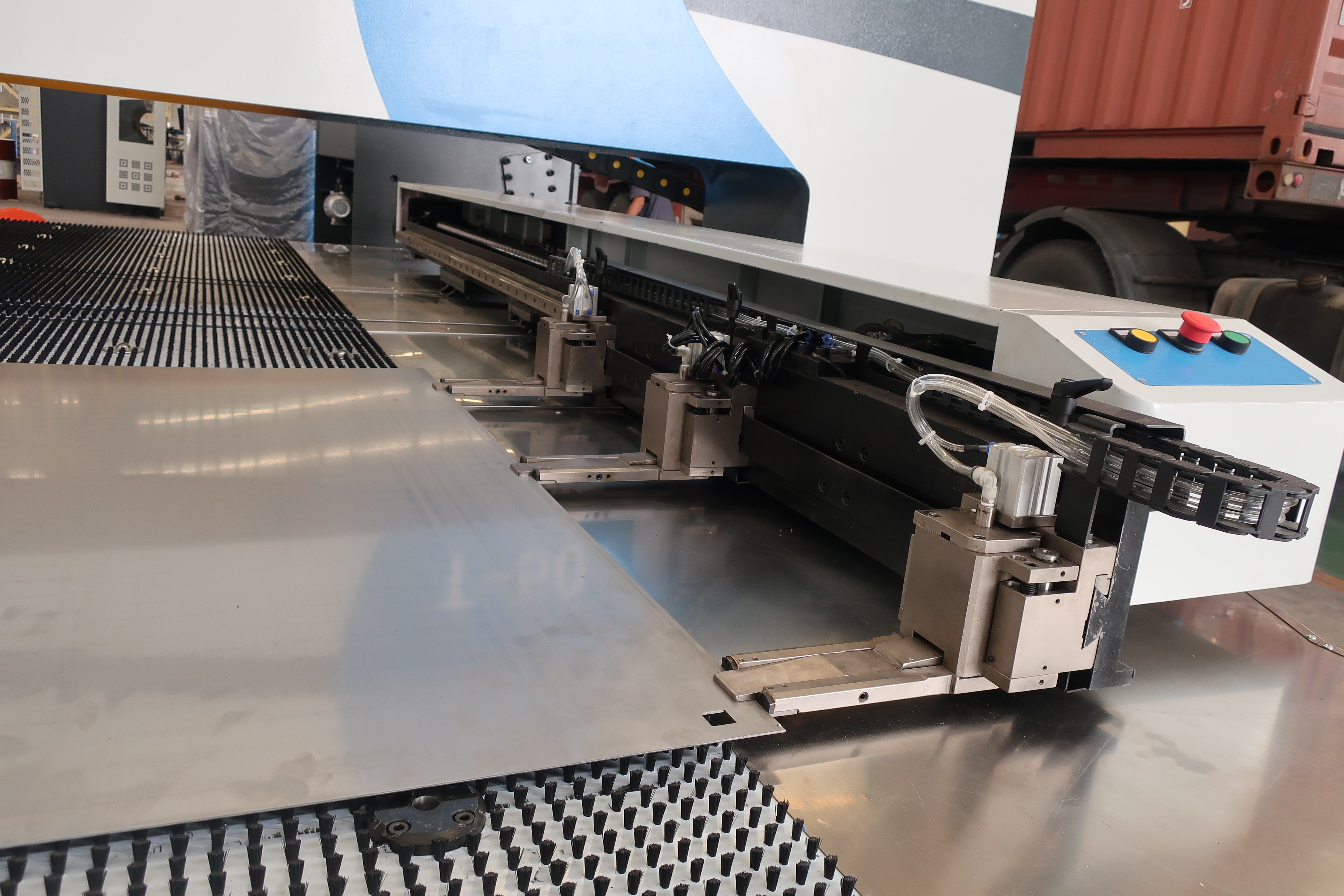

●3 automatic repositioning clamps and loading switches.

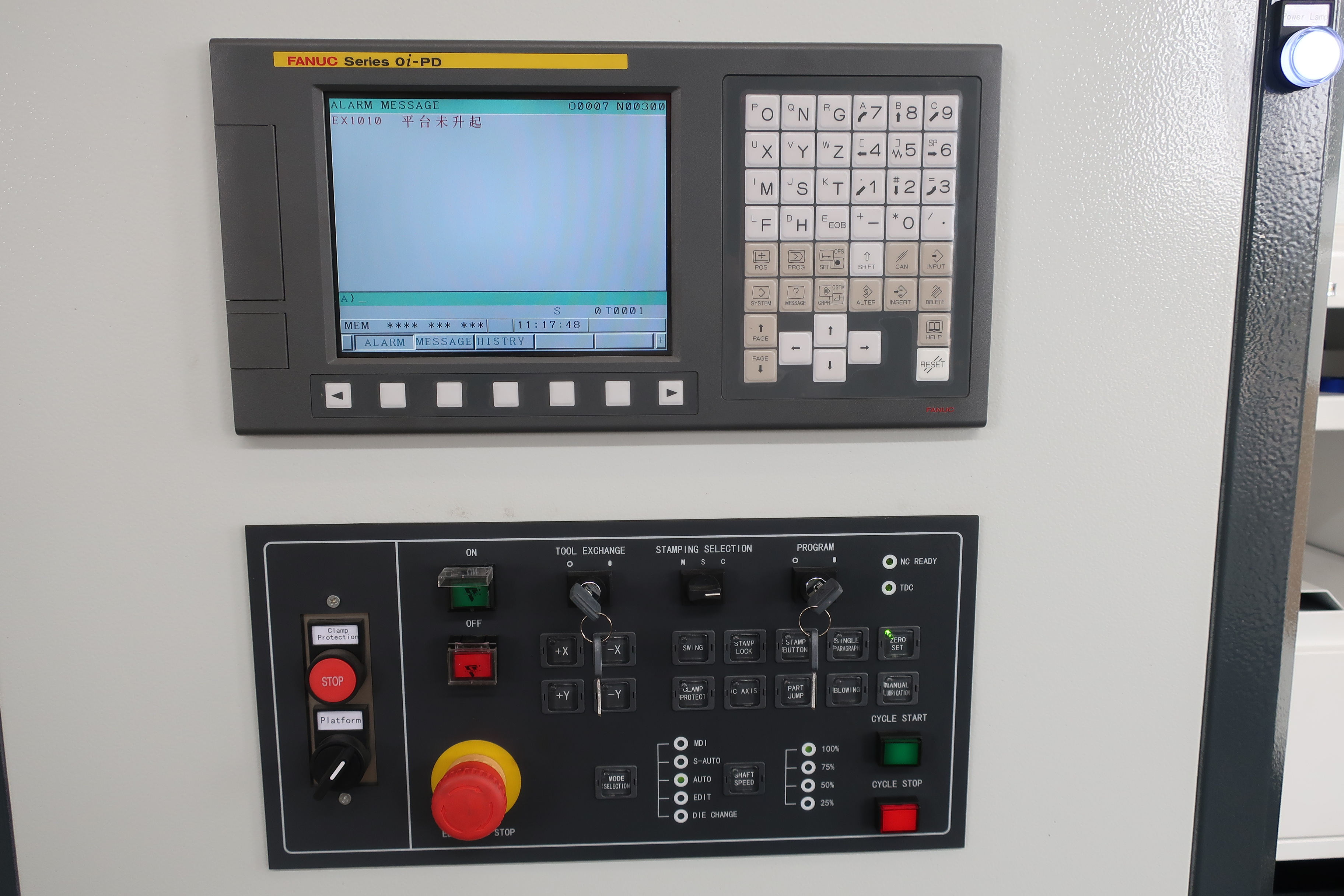

●FANUC Series Oi-PO CNC Control System
●Aluminum workholder
●Tool lubricating system (Airblow).

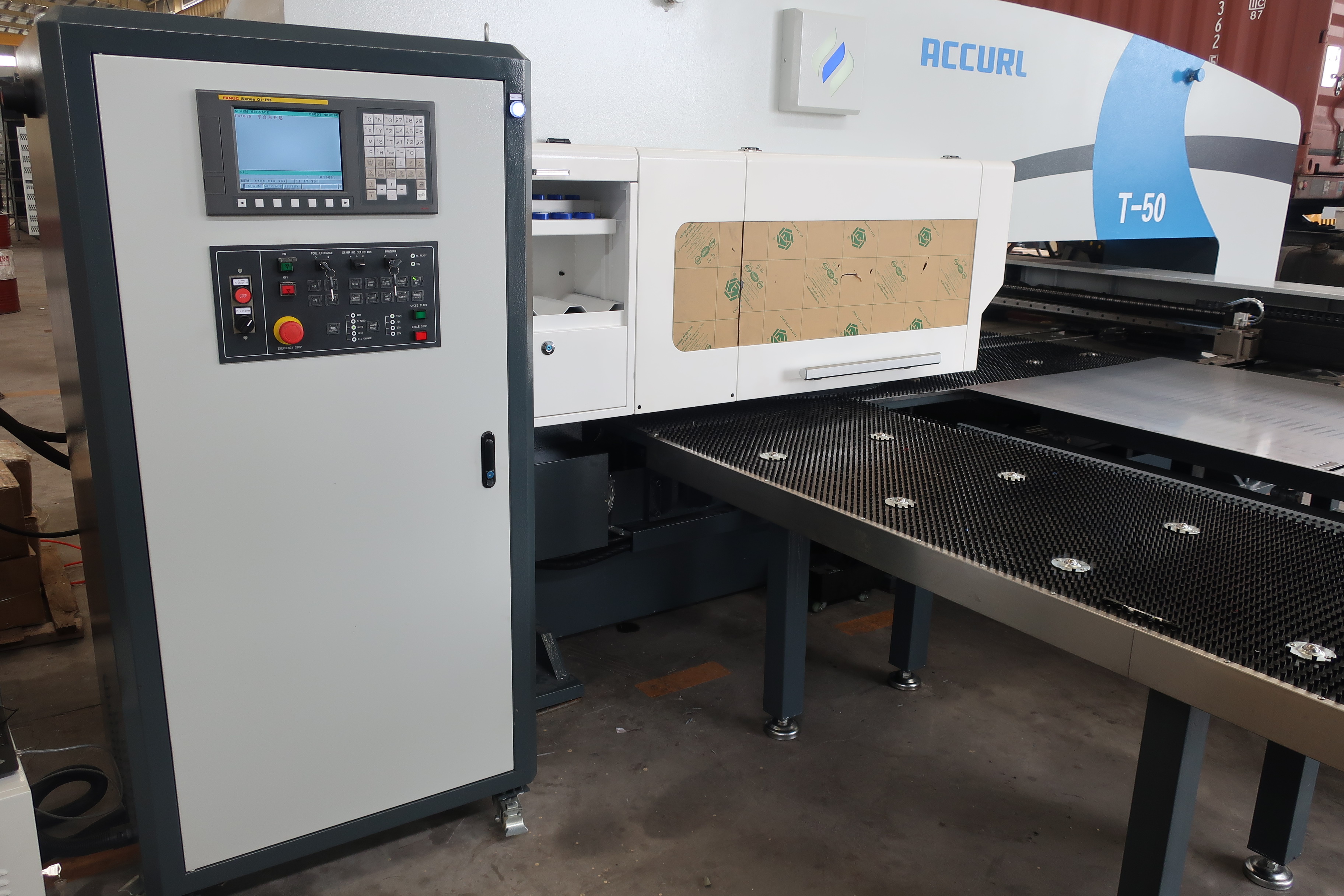

●Free standing control panel.
●Control with foot pedal.
●Tools stuck safety system
●1 software (Lantek or RADAN software).

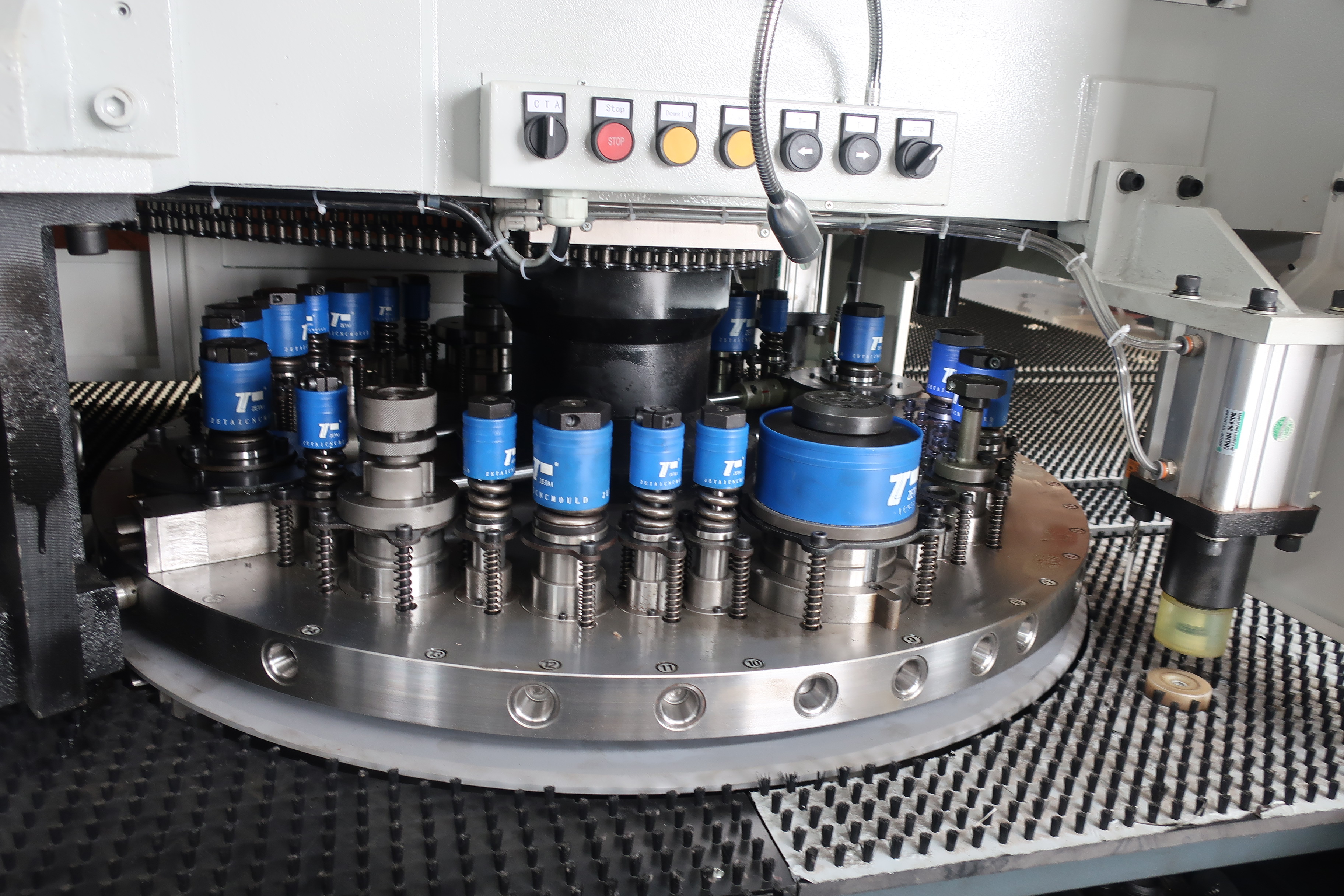

●24 or 42 turret stations
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Sheet jumping switches
●Scrap box.
●Chain protection around the machine (safety system).
Specification
Item
Unit
MAX-SF-30T
Punching Capacity
Ton
30
X Traverse Length
mm
2490±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
6.35
Max Mass of Material
kg
110
X Axis Traverse Speed
m/min
80
Y Axis Traverse Speed
m/min
70
Max Traverse Speed
m/min
105
Punching Speed at 25mm pitch
hits/min.
360
Nibbling Speed (stroke length 4mm, pitch 1mm)
hits/min.
650
Tool Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
34
Numer of Auto Index Stations
pcs(type)
2B
Turret Rotating Speed
rpm
33
Auto Index Rotating Speed
rpm
100
Ram Stroke Distance
mm
0-31
Working Table
Brush+Supporting Ball Set
Number of Sheet Clamps
pcs
3
Power Supply
KVA
24
Air Supply
NL/min
250
Air Pressure
bar
6
Size of Control Cabinet
mm
1200 × 600 × 1900
Number of Controllable Axis
Axis
4
RAM Memory
KB
512
Serial Interface
RS232 / RJ45 / PCMCIA
Punching Precision
mm
±0.1
Machine Dimension (L × W × H)
mm
4687 × 5102 × 2385
Net Weight (approx.)
kgf
13000
From the supplier
ACCURL Servo CNC Turret Punch Press MAX-SF-30 ton with FANUC Series Oi-PO CNC Control System
MAX SF Series for
The Perfect CNC Turret Punching Machine
ACCURL®MAX-SF Series CNC Punch Press Machine is the newly developed Multi Index Tools Turret Punch Press equipped with advanced Servo Hydraulic System, introduced by Tailift’s professional R&D and production teams who have been dedicated to machineries for decades. Accurl MAX SF Series CNC Punching machines provides the fastest, flexible and reliable punch press satisfying your expectation of fast and precise sheet metal works.
Advanced Servo System:
●Advanced CNC Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
●To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
●Uniquely designed Machine structure ensures less preventive maintenance
Standard Equipments :
●Accurl Direct Drive servo punch system
●Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors
●3 automatic repositioning clamps and loading switches.
●FANUC Series Oi-PO CNC Control System
●Aluminum workholder
●Tool lubricating system (Airblow).
●Free standing control panel.
●Control with foot pedal.
●Tools stuck safety system
●1 software (Lantek or RADAN software).
●24 or 42 turret stations
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Sheet jumping switches
●Scrap box.
●Chain protection around the machine (safety system).
Specification
Item
Unit
MAX-SF-30T
Punching Capacity
Ton
30
X Traverse Length
mm
2490±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
6.35
Max Mass of Material
kg
110
X Axis Traverse Speed
m/min
80
Y Axis Traverse Speed
m/min
70
Max Traverse Speed
m/min
105
Punching Speed at 25mm pitch
hits/min.
360
Nibbling Speed (stroke length 4mm, pitch 1mm)
hits/min.
650
Tool Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
34
Numer of Auto Index Stations
pcs(type)
2B
Turret Rotating Speed
rpm
33
Auto Index Rotating Speed
rpm
100
Ram Stroke Distance
mm
0-31
Working Table
Brush+Supporting Ball Set
Number of Sheet Clamps
pcs
3
Power Supply
KVA
24
Air Supply
NL/min
250
Air Pressure
bar
6
Size of Control Cabinet
mm
1200 × 600 × 1900
Number of Controllable Axis
Axis
4
RAM Memory
KB
512
Serial Interface
RS232 / RJ45 / PCMCIA
Punching Precision
mm
±0.1
Machine Dimension (L × W × H)
mm
4687 × 5102 × 2385
Net Weight (approx.)
kgf
13000
