CNC Servo Driven Ram Turret Punch Press MAX-SF- 50 ton for Superior Performance Servo CNC Punching Machine
ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO.LTD
See what’s includedHide breakdown
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
CNC Servo Driven Ram Turret Punch Press MAX-SF- 50 ton for Superior Performance Servo CNC Punching Machine
ACCURL CNC MACHINE (ANHUI) MANUFACTORY CO.LTDSee what’s includedHide breakdown
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $7,352,500
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $257,338
- Section 301 tariff (25.0%)
- $1,838,125
- Customs fees (MPF/HMF)
- $9,825
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: stainless steel
- Size: 5190*3250*2550
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
Product details
| Materials | stainless steel |
|---|---|
| Size | 5190*3250*2550 |
| Color | customizable |
From the supplier
CNC Servo Driven Ram Turret Punch Press MAX-SF- 50 ton for Superior Performance Servo CNC Punching Machine
MAX SF Series for
A punching machine that converts your workshop into one with the highest productivity.
ACCURL®MAX-SF Series CNC punch press machine is new generation for Servo Hydraulic series, inherited the features of high reliability and durability from series HP. With Germany H+L advanced servo hydraulic system, its powerful punching capacity is good for thick sheet. Multi-functional for punching, forming, roller cutting and tapping, substantial reduce the stand-by time and increase material utilization. Furthermore, high speed, high accuracy, energy saving, and high integrated assembly construction, efficient reduce maintenance cost.
Advanced Servo System:
●Advanced CNC Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
●To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
●Uniquely designed Machine structure ensures less preventive maintenance
●The AC punch servo motor can be programmed for various applications.
I) High speed applications.
II) Low noise applications.
III) Forming applications.
●The punch servo utilizes a direct drive gearbox that supplies power and speed,the servo allows the user to steplssly adjust the punch stroke and accommodate any pressure curve requirements.
Standard Equipments :
●Accurl Direct Drive servo punch system
●Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors

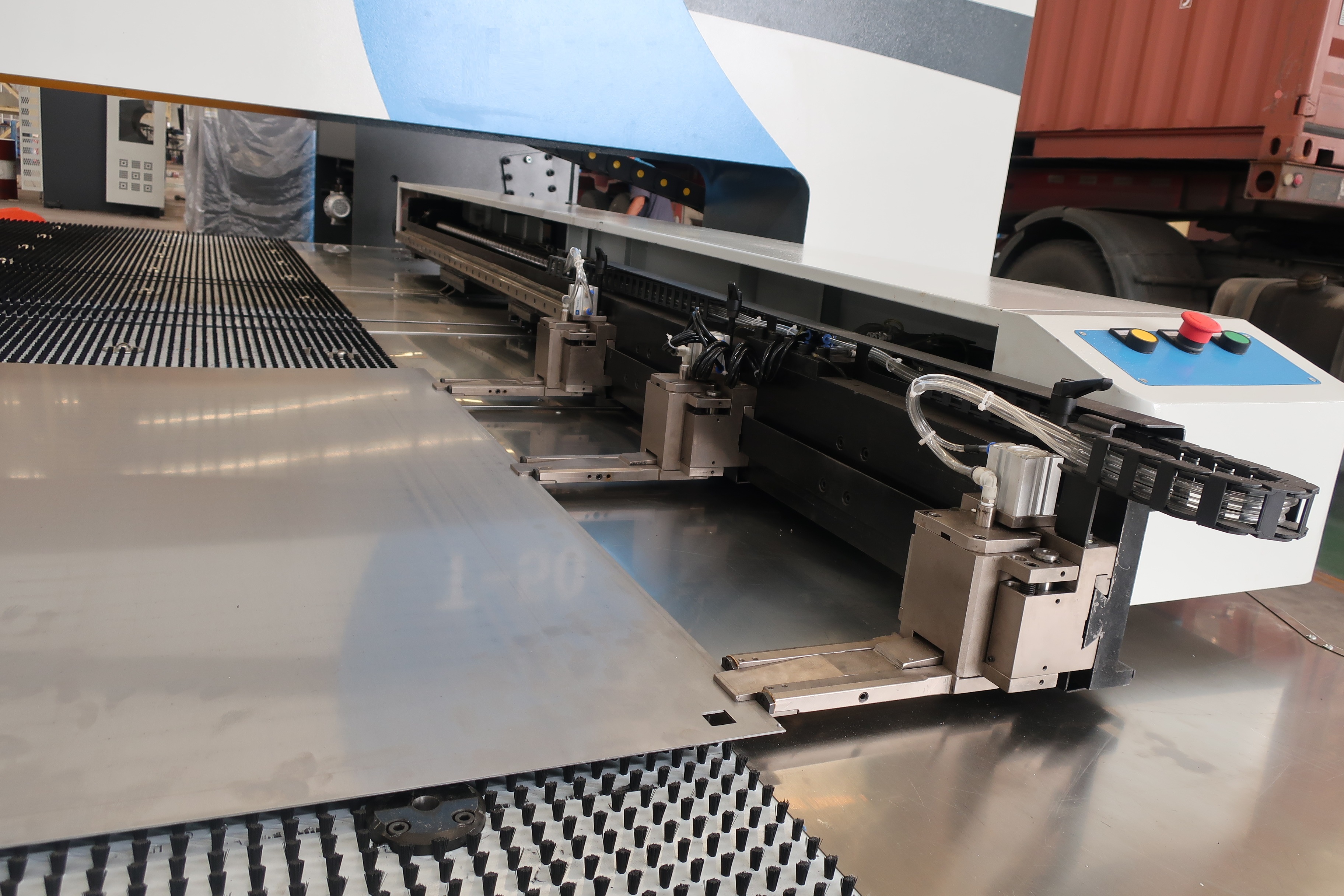

●3 automatic repositioning clamps and loading switches.

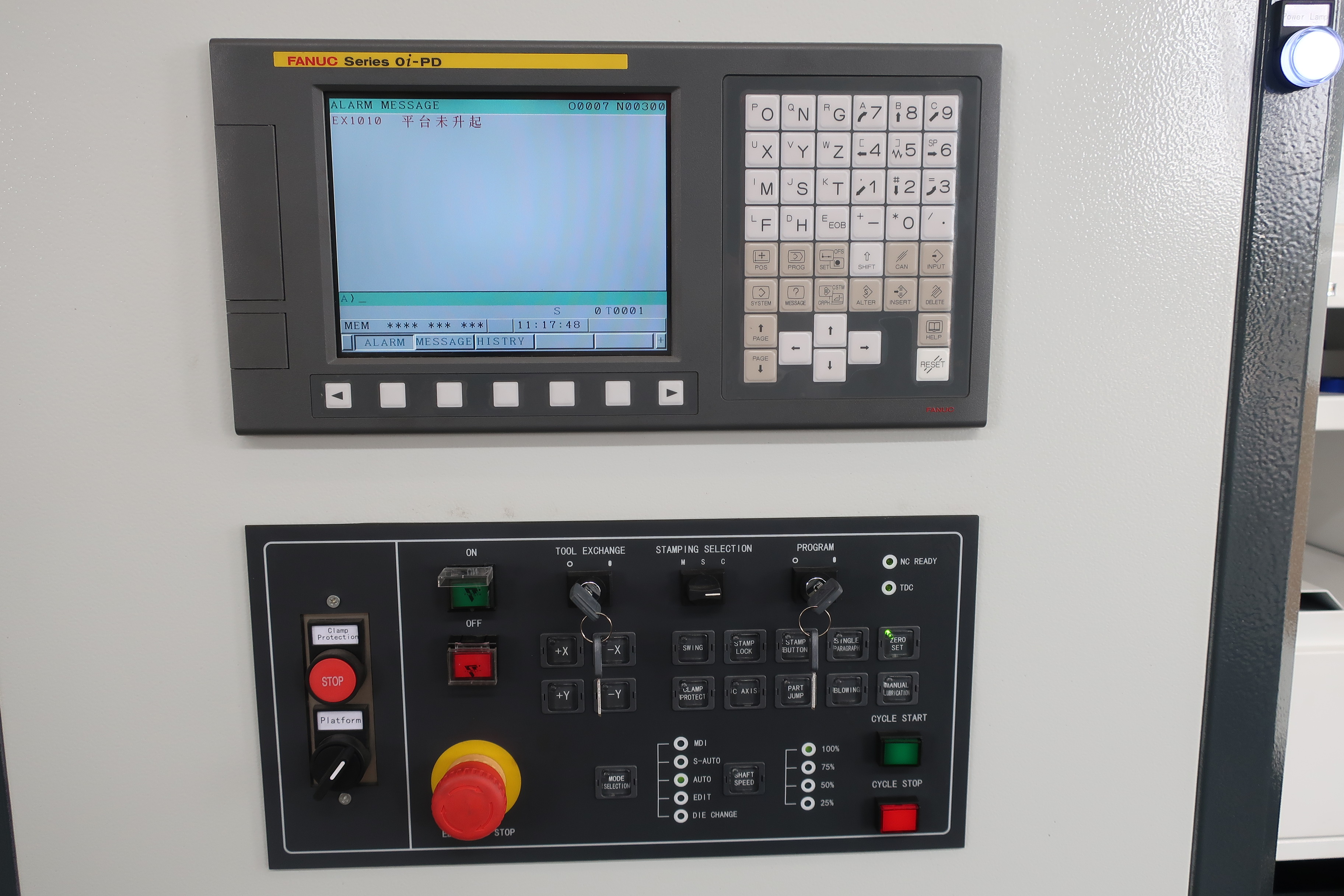

●FANUC Series Oi-PO CNC Control System
●Aluminum workholder
●Tool lubricating system (Airblow).

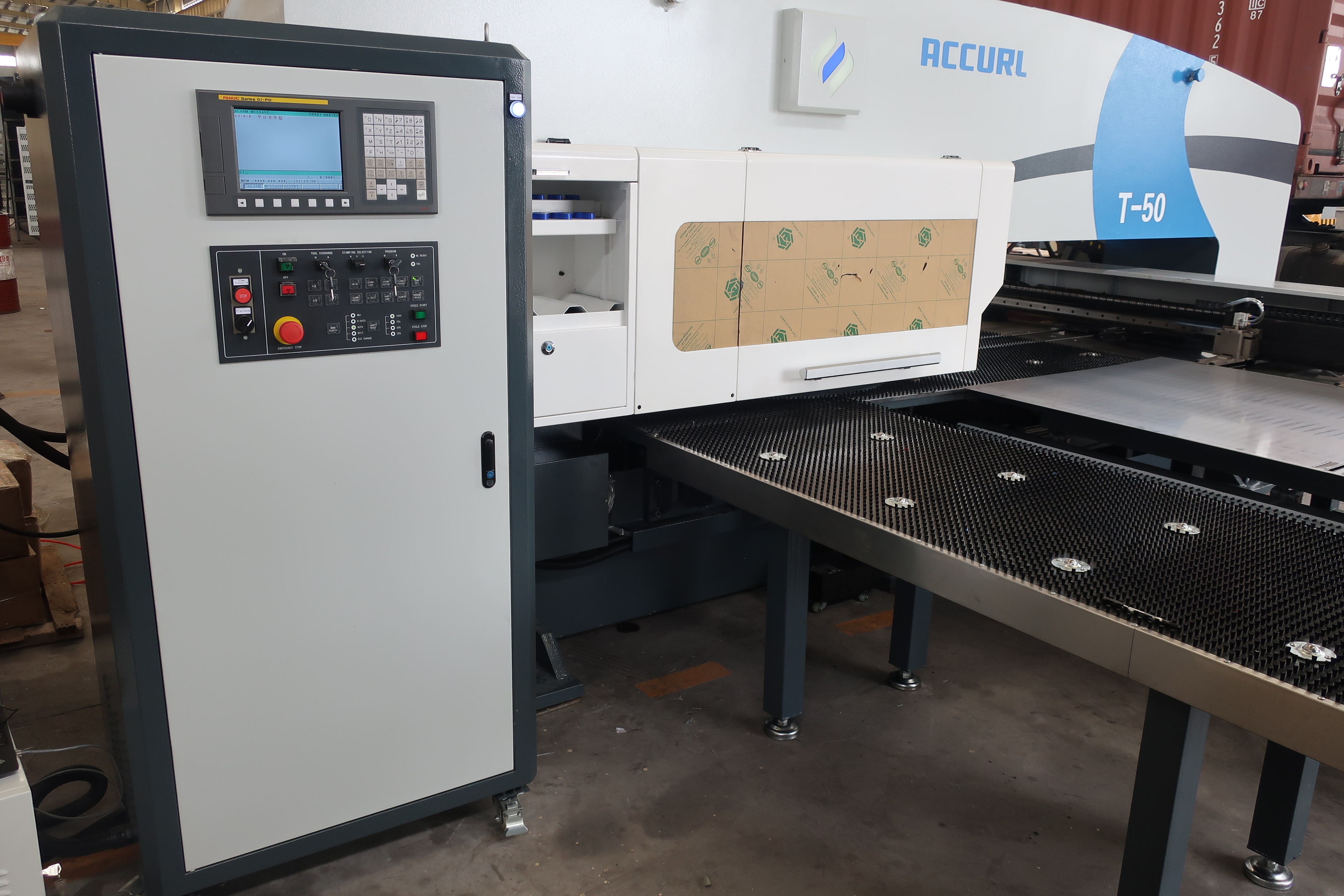

●Free standing control panel.
●Control with foot pedal.
●Tools stuck safety system
●1 software (Lantek or RADAN software).

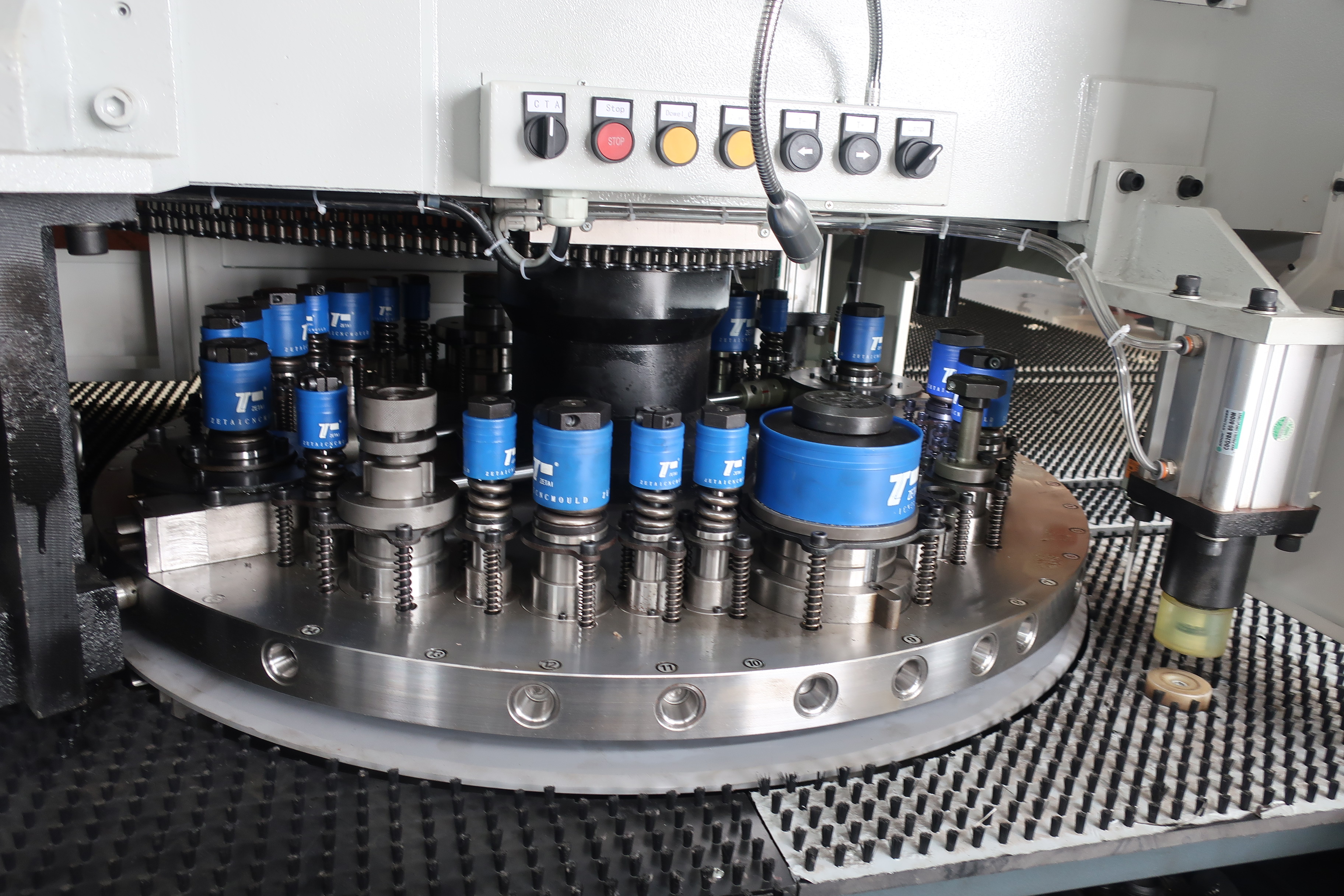

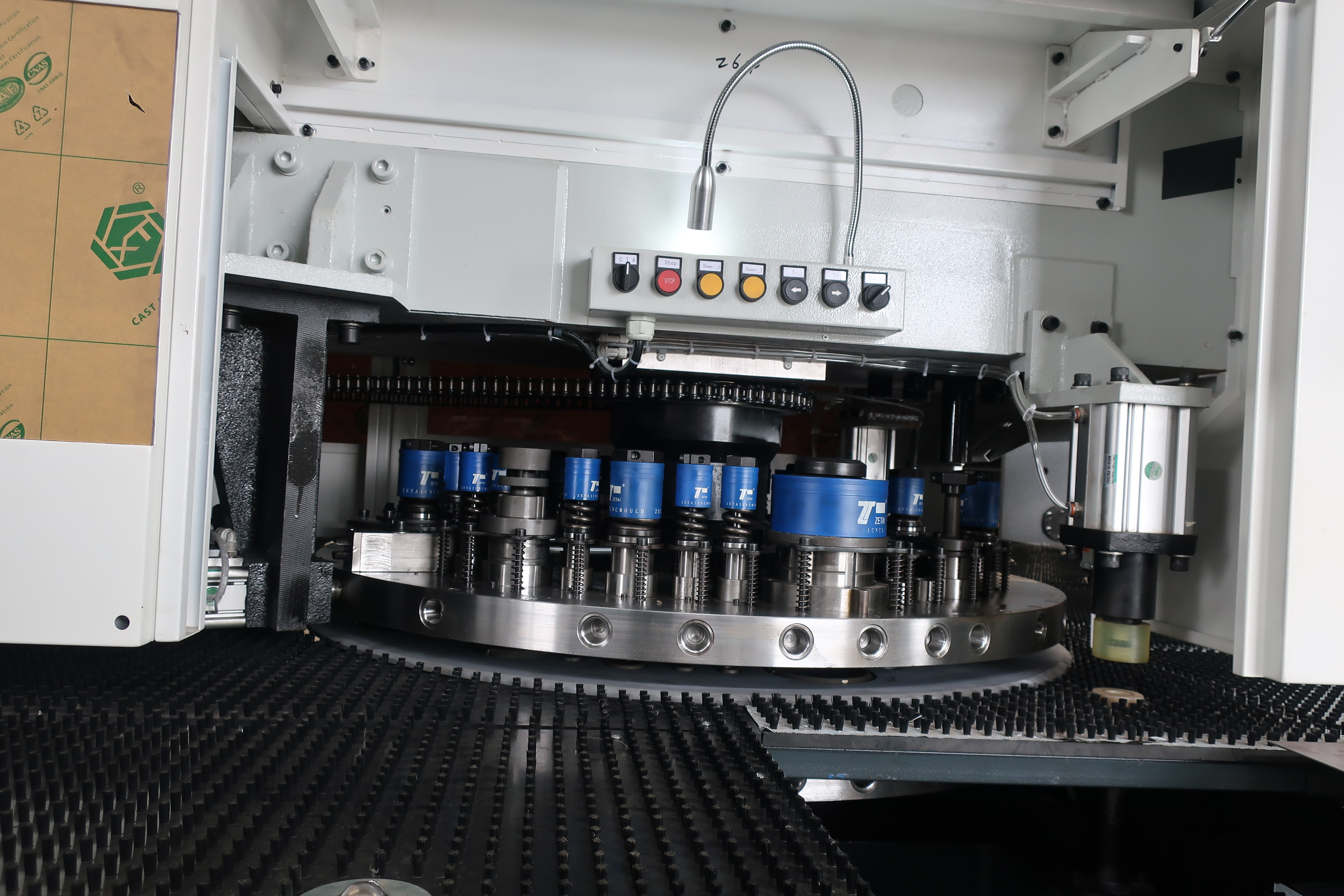

●24 or 42 turret stations
●Digital oil temperature indicator.
●Software for using wheel and forming tools.
●Sheet jumping switches
●Scrap box.
●Chain protection around the machine (safety system).
Specifications:
Item
Unit
MAX-SF-50T
Punching Capacity
Ton
50
X Traverse Length
mm
2500±10
Y Traverse Length
mm
1250±10
Max Sheet Size
mm
1250x4980
Max Sheet Thickness
mm
8.35
Max Sheet Weight
kg
110
X Axis Traverse Speed
m/min
100
Y Axis Traverse Speed
m/min
80
Max Traverse Speed
m/min
128
Punching Speed at 25mm pitch*
hist/min
450
Nibbling Speed
hist/min
1200
Tools Type
Thick turret
Max Punching Diameter
mm
88.9
Number of Tool Stations
32 / 42 / 52
Number of Auto Index Stations
pcs(type)
4(2B+2C) / 3(2B+1C) / 2(1B+1C)
Turret Rotating Speed
rpm
33
Auto Index Rotationg Speed
rpm
100
Ram Stroke Distance
mm
0~31
Working Tables Size
Brush
Number of Sheet Clamps
pcs
3
Air Supply
NL/min
250
Air Supply
bar
6
Oil Tank Volume
Litre
275
Machine Dimension (L x W x H)
mm
5940x5220x2420
Net Weight (approx.)
kgf
15,000
Size of Control Cabinet
mm
1350x700x2185
CNC Controller
FANUC Oi-PD
Number of Controllable Axes
Axis
4
RAM Memory
KB
512
Serial Interface
RS232/RJ45/PCMCIA
Punching Precision*
mm
±0.1
