About this product
- Materials: stainless steel
- Size: 4250*2600*3100
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
About this product
- Materials: stainless steel
- Size: 4250*2600*3100
- Color: customizable
- Exports to: Middle East, Southeast Asia, South Asia, Latin America, EU, Other European Countries, Others
- Made in: Anhui, China
Product details
| Materials | stainless steel |
|---|---|
| Size | 4250*2600*3100 |
| Color | customizable |
Product details
| Materials | stainless steel |
|---|---|
| Size | 4250*2600*3100 |
| Color | customizable |
From the supplier

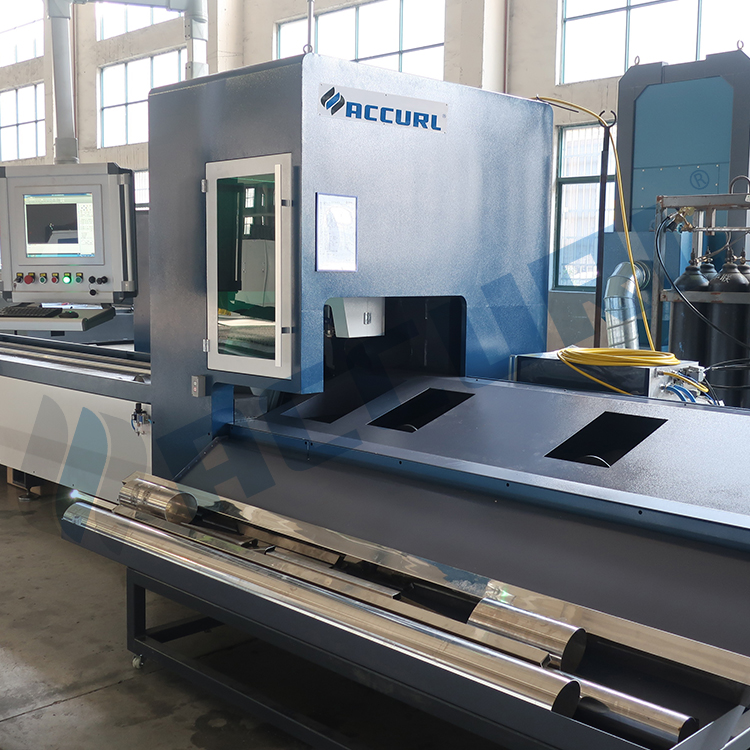

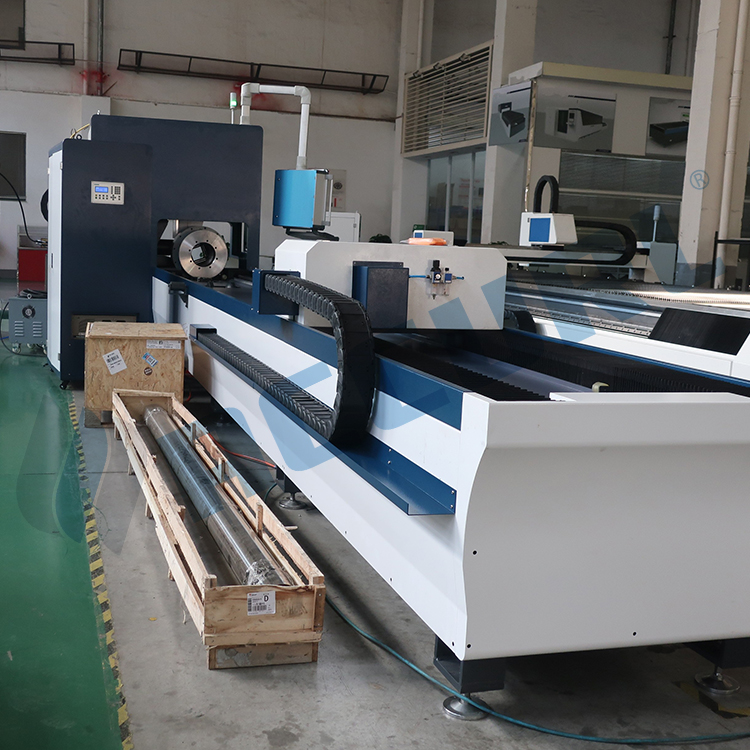

Accurl High speed auto-feeding 2000W Metal Pipe and Sheet Tube Laser Cutting Machine
Our ACCURL team now introduces its newest generation in tube and profile processing technology – the fiber laser tube cutting system. With over 30 years of experience in design and manufacturing of tube cutting machines, we are specialized in providing solutions for tube and pipe industries. The new laser tube cutting line is an ultimate solution that combines multiple processes into one efficient system for maximum flexibility, automation, and performance.
Metal Pipe and Sheet Fiber Laser Cutting Machine advantages:
1.cut lines and holes with different diameters from different directions on the pipe
2.cut inclined section at the end of pipe
3.cut branch pipe intersected with the main circular pipe
4.cut square hole,waist-shaped hole and circular hole on the pipe
S.truncate the pipe
6.cut all kinds of graphics on the surface of the square pipe
7.cut different sizes metal Sheets
- 8. cut holes on the molding box
Tube-Cutting Technical Specifications
Max Diameter(mm)
Ø210
Max Square Tube Dimension(mm)
140x140
Max Rectangular Tube Dimension(mm)
170x120
Min.Diameter(mm)
Ø20(Ø12Option)
Max.Tube Length(mm)
6500
Min.Tube Length (for automatic loading)
3000
Max. Tube weight (kg/m)
37.5
Max.Material Thickness(mm)(for1kwTo4kw)
0.5-12
Min.Material Thickness(mm)
0.8
Automatic Loading
Optional
Automatic Unloading
Optional
Cutting Head
2D
Amount of Chuck
1
Centering Chuck
YES
Last Cut Tube Length(mm)
185
Velocity of Driver Chuck(m/dk.)
90
Acceleration of Driver Chuck(m/s²)
10
Accuracy(mm)
±0,20
Positioning Accuracy(mm)
±0,05
Tube Types
Pipe,Square,Rectangular, Eliptic
H,C,U,L
From the supplier
Accurl High speed auto-feeding 2000W Metal Pipe and Sheet Tube Laser Cutting Machine
Our ACCURL team now introduces its newest generation in tube and profile processing technology – the fiber laser tube cutting system. With over 30 years of experience in design and manufacturing of tube cutting machines, we are specialized in providing solutions for tube and pipe industries. The new laser tube cutting line is an ultimate solution that combines multiple processes into one efficient system for maximum flexibility, automation, and performance.
Metal Pipe and Sheet Fiber Laser Cutting Machine advantages:
1.cut lines and holes with different diameters from different directions on the pipe
2.cut inclined section at the end of pipe
3.cut branch pipe intersected with the main circular pipe
4.cut square hole,waist-shaped hole and circular hole on the pipe
S.truncate the pipe
6.cut all kinds of graphics on the surface of the square pipe
7.cut different sizes metal Sheets
- 8. cut holes on the molding box
Tube-Cutting Technical Specifications
Max Diameter(mm)
Ø210
Max Square Tube Dimension(mm)
140x140
Max Rectangular Tube Dimension(mm)
170x120
Min.Diameter(mm)
Ø20(Ø12Option)
Max.Tube Length(mm)
6500
Min.Tube Length (for automatic loading)
3000
Max. Tube weight (kg/m)
37.5
Max.Material Thickness(mm)(for1kwTo4kw)
0.5-12
Min.Material Thickness(mm)
0.8
Automatic Loading
Optional
Automatic Unloading
Optional
Cutting Head
2D
Amount of Chuck
1
Centering Chuck
YES
Last Cut Tube Length(mm)
185
Velocity of Driver Chuck(m/dk.)
90
Acceleration of Driver Chuck(m/s²)
10
Accuracy(mm)
±0,20
Positioning Accuracy(mm)
±0,05
Tube Types
Pipe,Square,Rectangular, Eliptic
H,C,U,L
