ADDA-PV-63 Photovoltaic DC Arc Fault Detector Audible or Visual Alarm DC80-1500V
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDA-PV-63 Photovoltaic DC Arc Fault Detector Audible or Visual Alarm DC80-1500V
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Structure: MCBMCCB
- Certification: CCCOther
- Poles number: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Structure: MCBMCCB
- Certification: CCCOther
- Poles number: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Structure | MCBMCCB |
| Certification | CCCOther |
| Poles number | Other |
| Installation | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Structure | MCBMCCB |
| Certification | CCCOther |
| Poles number | Other |
| Installation | Other |
From the supplier
The ADDA-PV-63 PV DC arc fault detector is designed and developed by our company in accordance with the latest GB14287 standard from the Shenyang Fire Research Institute of the National Fire and Rescue Administration. It provides real-time monitoring of PV DC circuits. When an arc fault occurs in the circuit, the product will issue an alarm in a timely manner and simultaneously output one passive relay trip signal.

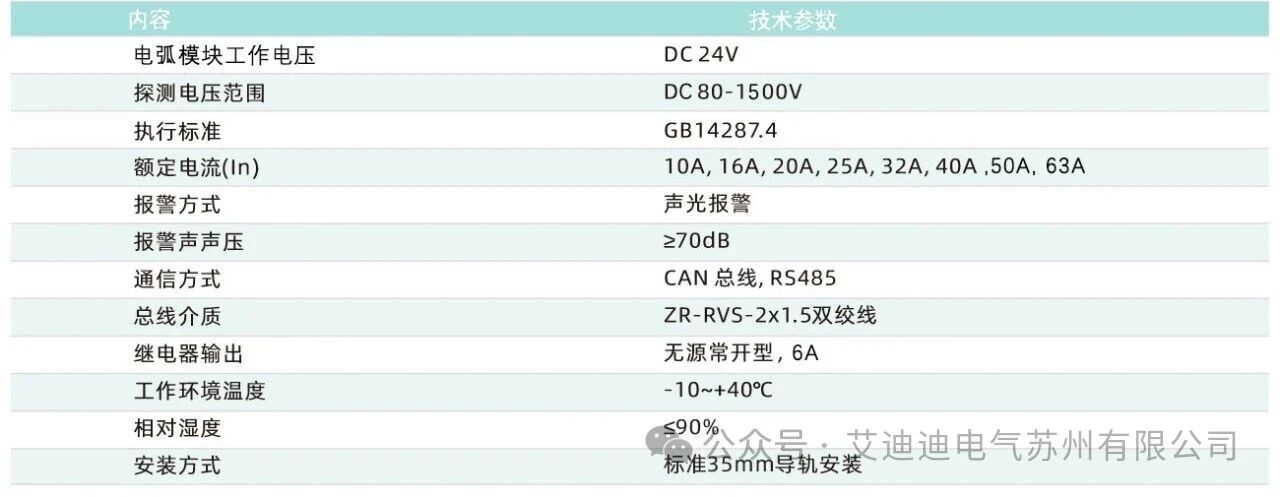

Technical Parameters
Content Technical Parameters Operating voltage of arc module DC 24V Detection voltage range DC 80-1500V Executive standard GB14287.4 Rated current (In) 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Alarm mode Audible and visual alarm Alarm sound pressure ≥70dB Communication method CAN bus, RS485 Bus medium ZR-RVS-2x1.5 twisted pair cable Relay output Passive normally open type, 6A Operating ambient temperature -10~+40℃ Relative humidity ≤90% Installation method Standard 35mm DIN rail installationFrom the supplier
The ADDA-PV-63 PV DC arc fault detector is designed and developed by our company in accordance with the latest GB14287 standard from the Shenyang Fire Research Institute of the National Fire and Rescue Administration. It provides real-time monitoring of PV DC circuits. When an arc fault occurs in the circuit, the product will issue an alarm in a timely manner and simultaneously output one passive relay trip signal.
Technical Parameters
Content Technical Parameters Operating voltage of arc module DC 24V Detection voltage range DC 80-1500V Executive standard GB14287.4 Rated current (In) 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Alarm mode Audible and visual alarm Alarm sound pressure ≥70dB Communication method CAN bus, RS485 Bus medium ZR-RVS-2x1.5 twisted pair cable Relay output Passive normally open type, 6A Operating ambient temperature -10~+40℃ Relative humidity ≤90% Installation method Standard 35mm DIN rail installationAbout the supplier
