ADDF9-63 6A~63A Arc Fault Detection Device AFDD+MCB 3P+N, Miniature Circuit Breaker AC400/415V 50Hz
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
ADDF9-63 6A~63A Arc Fault Detection Device AFDD+MCB 3P+N, Miniature Circuit Breaker AC400/415V 50Hz
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | Other |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | Other |
| Poles number | Other |
From the supplier

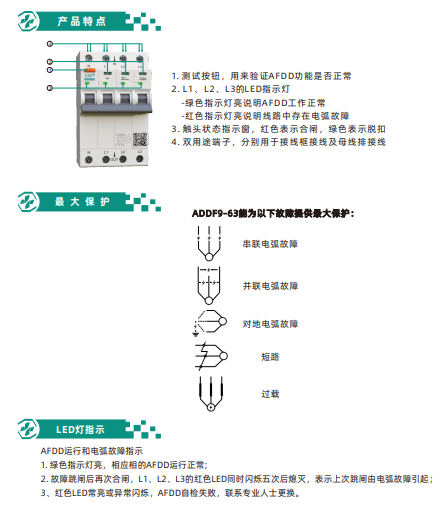

The ADDF9-63 three - phase four - wire Arc Fault Detection Device - breaker(MCB) and an arc - detection module. The ADDF9-63 is assembled from a miniature circuit Arc Fault Detection Device of short - circuit protection, over - current protection, and arc - fault protection. It can simultaneously detect the A - phase, B - phase, and C - phase fault arcs in three - phase circuits, and can also detect the fault arcs between phases. When the has functions it will immediately cut off the Arc Fault Detection Device detects an arc fault in the circuit, power supply to play a protective role.

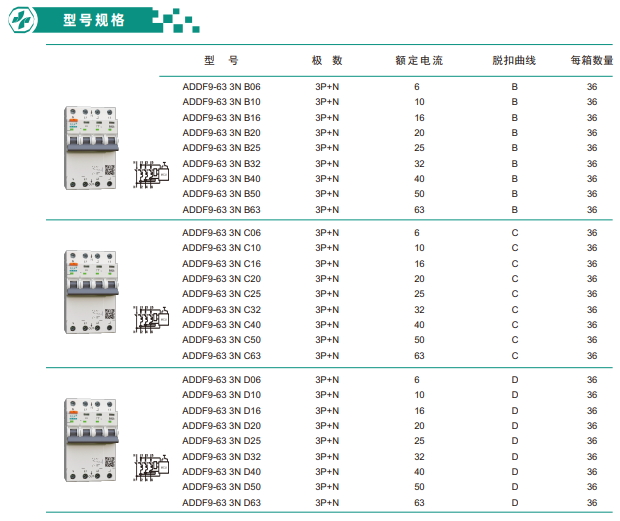

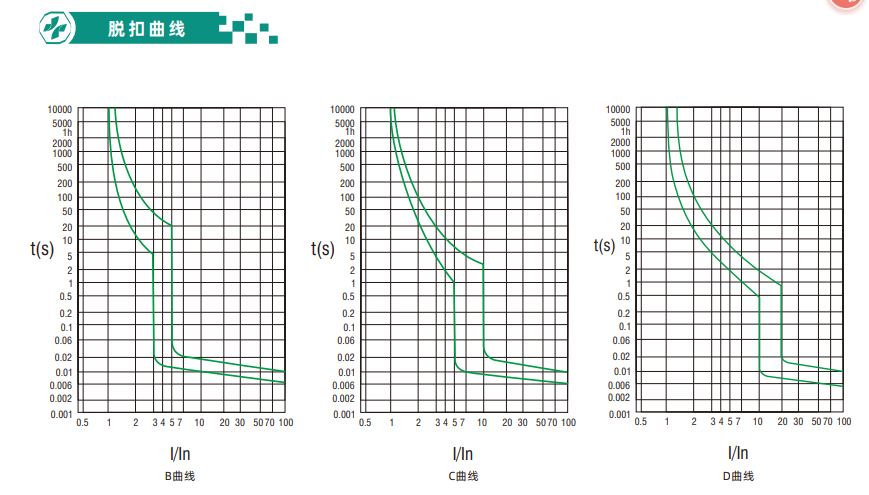

ContentTechnical ParametersStandardsIEC/EN62606; IEC/EN60898-1Number of poles3P+NRated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Rated voltage Ue, VAC400/415Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A6000Rated impulse withstand voltage Uimp, V4000Over-current protectionWith over-current protectionInstantaneous tripping typeType B, Type C, Type DDielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles4000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Ambient temperature,℃-25~+40
From the supplier
The ADDF9-63 three - phase four - wire Arc Fault Detection Device - breaker(MCB) and an arc - detection module. The ADDF9-63 is assembled from a miniature circuit Arc Fault Detection Device of short - circuit protection, over - current protection, and arc - fault protection. It can simultaneously detect the A - phase, B - phase, and C - phase fault arcs in three - phase circuits, and can also detect the fault arcs between phases. When the has functions it will immediately cut off the Arc Fault Detection Device detects an arc fault in the circuit, power supply to play a protective role.
ContentTechnical ParametersStandardsIEC/EN62606; IEC/EN60898-1Number of poles3P+NRated current In, A6, 10, 16, 20, 25, 32, 40, 50, 63Rated voltage Ue, VAC400/415Rated insulation voltage Ui, V500Rated frequency, Hz50Rated short-circuit breaking capacity Icn, A6000Rated impulse withstand voltage Uimp, V4000Over-current protectionWith over-current protectionInstantaneous tripping typeType B, Type C, Type DDielectric strength test voltage for 1min, V2000Mechanical and electrical endurance, cycles4000Protection degreeIP20Connection capacity, mm²25Terminal tightening torque, N.m2.5Ambient temperature,℃-25~+40
