AFI-PV2-63 Photovoltaic DC Arc Fault Circuit Interrupter AFDD AFCI Breaker DC500V(2P)/DC1000V(4P)
Adidi Electric(Suzhou)Co.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
AFI-PV2-63 Photovoltaic DC Arc Fault Circuit Interrupter AFDD AFCI Breaker DC500V(2P)/DC1000V(4P)
Adidi Electric(Suzhou)Co.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
About this product
- Materials: plastic
- Size: mm
- Color: grey
- Arc-extinguishing medium: Other
- Installation: Other
- Certification: CCCOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Suzhou, Jiangsu, China
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCOther |
| Poles number | Other |
Product details
| Materials | plastic |
|---|---|
| Size | mm |
| Color | grey |
| Arc-extinguishing medium | Other |
| Installation | Other |
| Certification | CCCOther |
| Poles number | Other |
From the supplier
We have adopted a fundamentally different R&D approach in developing the AFI-PV2-63. Compared to the AFI-PV-63, the AFI-PV2-63 is equipped with a proprietary intelligent algorithm, which provides higher compatibility with inverters from various brands and suitability for higher operating voltages. The AFI‑PV2‑63 series PV DC arc fault protector is assembled from a DC circuit breaker, a tripping mechanism, and a DC arc detection module. It detects DC arc faults via a chip‑based detection routine. When a DC arc fault occurs in the circuit, the AFI‑PV2‑63 series protector effectively identifies the fault arc and immediately disconnects the power supply, thereby providing arc fault protection.
Technical Parameters

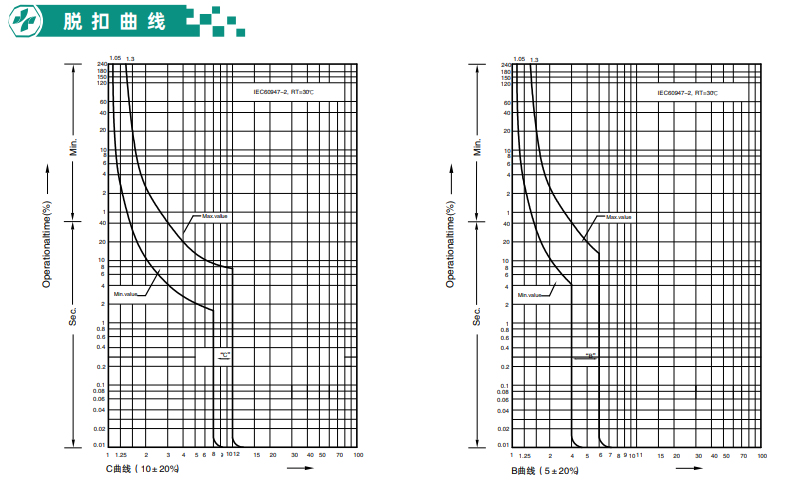

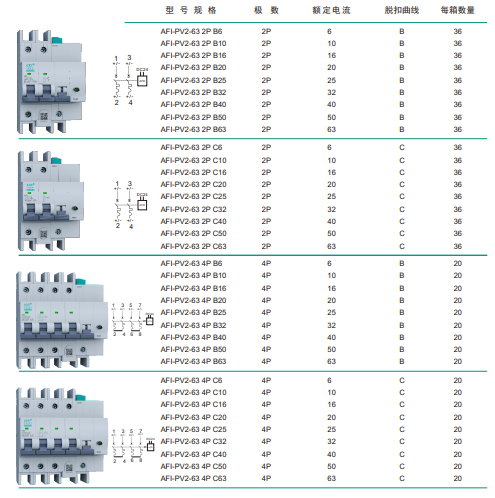

Content Technical Parameters Rated operational voltage (Ue) DC500V (2P)/DC1000V (4P) Operating voltage of arc‑fault detection module DC24V‑DC60V Rated current (In) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Number of poles 2P / 4P Instantaneous tripping type Setting value, Type B: 5In±20%, Type C: 10In±20% Rated short‑circuit capacity (Icn) 1.5kA Operating short‑circuit capacity (Ics) 1.5kA Compliance standards IEC63027, GB/T39750 Rated insulation voltage (Ui) 1500V DC Rated impulse withstand voltage (Uimp) 8kVFrom the supplier
We have adopted a fundamentally different R&D approach in developing the AFI-PV2-63. Compared to the AFI-PV-63, the AFI-PV2-63 is equipped with a proprietary intelligent algorithm, which provides higher compatibility with inverters from various brands and suitability for higher operating voltages. The AFI‑PV2‑63 series PV DC arc fault protector is assembled from a DC circuit breaker, a tripping mechanism, and a DC arc detection module. It detects DC arc faults via a chip‑based detection routine. When a DC arc fault occurs in the circuit, the AFI‑PV2‑63 series protector effectively identifies the fault arc and immediately disconnects the power supply, thereby providing arc fault protection.
Technical Parameters
Content Technical Parameters Rated operational voltage (Ue) DC500V (2P)/DC1000V (4P) Operating voltage of arc‑fault detection module DC24V‑DC60V Rated current (In) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A Number of poles 2P / 4P Instantaneous tripping type Setting value, Type B: 5In±20%, Type C: 10In±20% Rated short‑circuit capacity (Icn) 1.5kA Operating short‑circuit capacity (Ics) 1.5kA Compliance standards IEC63027, GB/T39750 Rated insulation voltage (Ui) 1500V DC Rated impulse withstand voltage (Uimp) 8kVAbout the supplier
