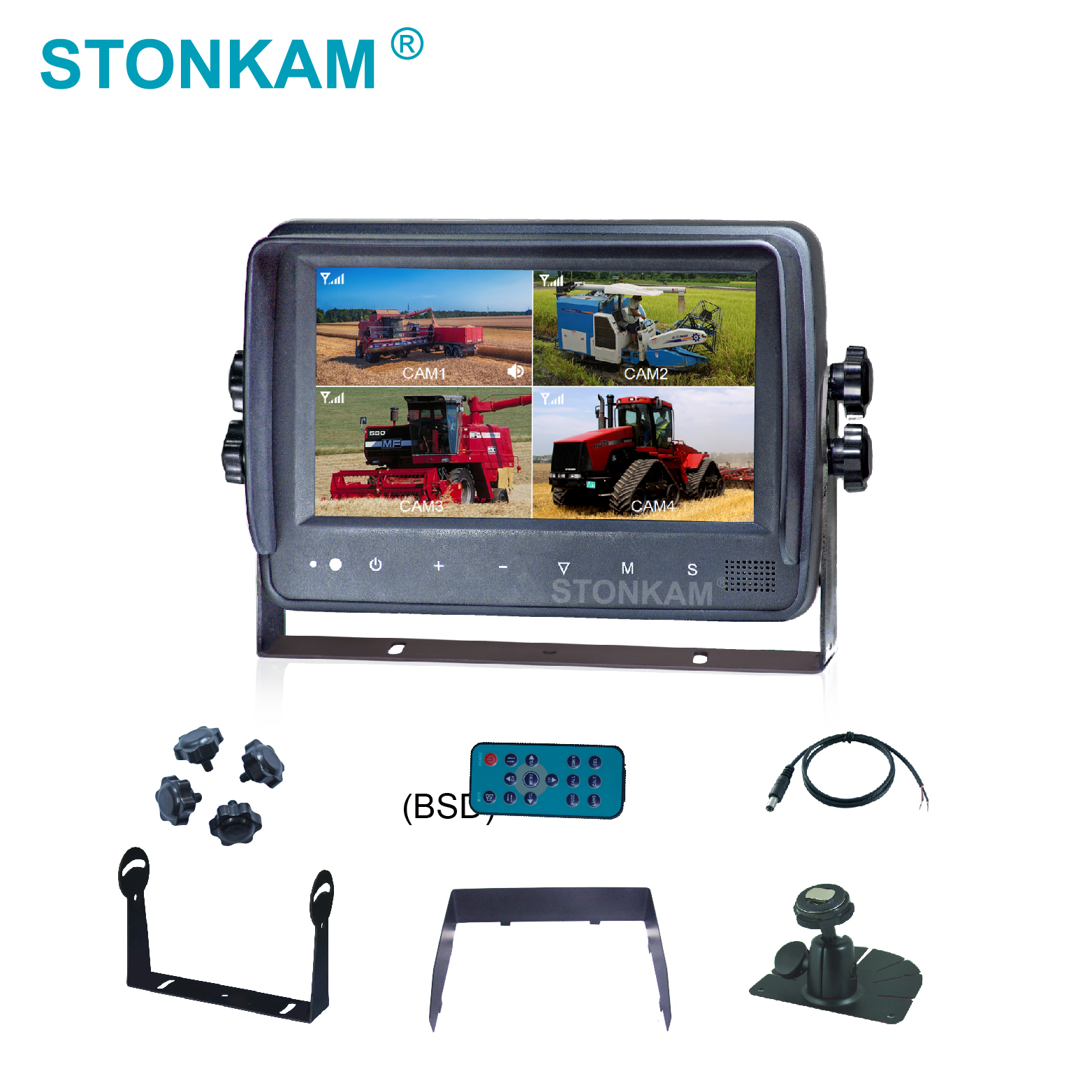

STONKAM® Waterproof 7 inch 720P digital wireless rear view camera system is easy to install. It supports quad view and auto pairing; good for truck, trailer, RV, etc. It can work with HD digital wireless rear view camera to form excellent Wireless Vehicle Monitor System. Click to see more STONKAM® Digital Wireless Camera System products.

• Support 4CH wireless camera and wireless transmitter.
• Waterproof; with built-in antenna.
• Support multiple display modes, such as quad-view mode, split-view mode, single view mode, and the channels for the quad-view and split-view can be set flexibly.
• Supports both manual and automatic pairing.
• Supporting 1080P/720P/D1 camera input.
• Touch screen optional.
• Support 5 trigger input-wires, includes 4 channel single view trigger display and 1 channel split view trigger display, and the split view image can be set flexibly. In addition, the trigger for time to return the main display and triggering priority of 5 trigger input-wires can be configurable.
• Auto-dim lighting control; screen brightness decreases automatically after the environment gets dark for 3 seconds.
• Auto scan function available, each channel can turn on or off auto scan function and adjust the scan time from 5 to 60 seconds.
• Rear view parking lines can be configured.

Specification

Wireless monitor:

LCD size

7"

Resolution

1024x 3 (RGB) x600

Contrast

700:1

Brightness

600cd/m²

Viewing Angle

U:80 / D:85, R/L:85

Aspect Ratio

16:9

Channel

4 channels

Operating Frequency

2400MHz ~ 2483.5MHz(ISM band)

Receiving Sensitivity

-78dBm

Transmitting power

FCC≤26dBm

CE≤20dBm

MIC≤10dBm

Decompression Form

H.264

Modulation

FHSS

Time Delay

200ms

Transmitting Distance

FCC≤300 M

CE≤200 M

MIC≤60 M

System Format

PAL / NTSC

Power Supply

DC 10-32V

Power Consumption

Max.10W

Loudspeaker

1W/8Ω

Operating temperature

-20~+70ºC,RH90%

Storage temperature

-30~+80ºC,RH90%

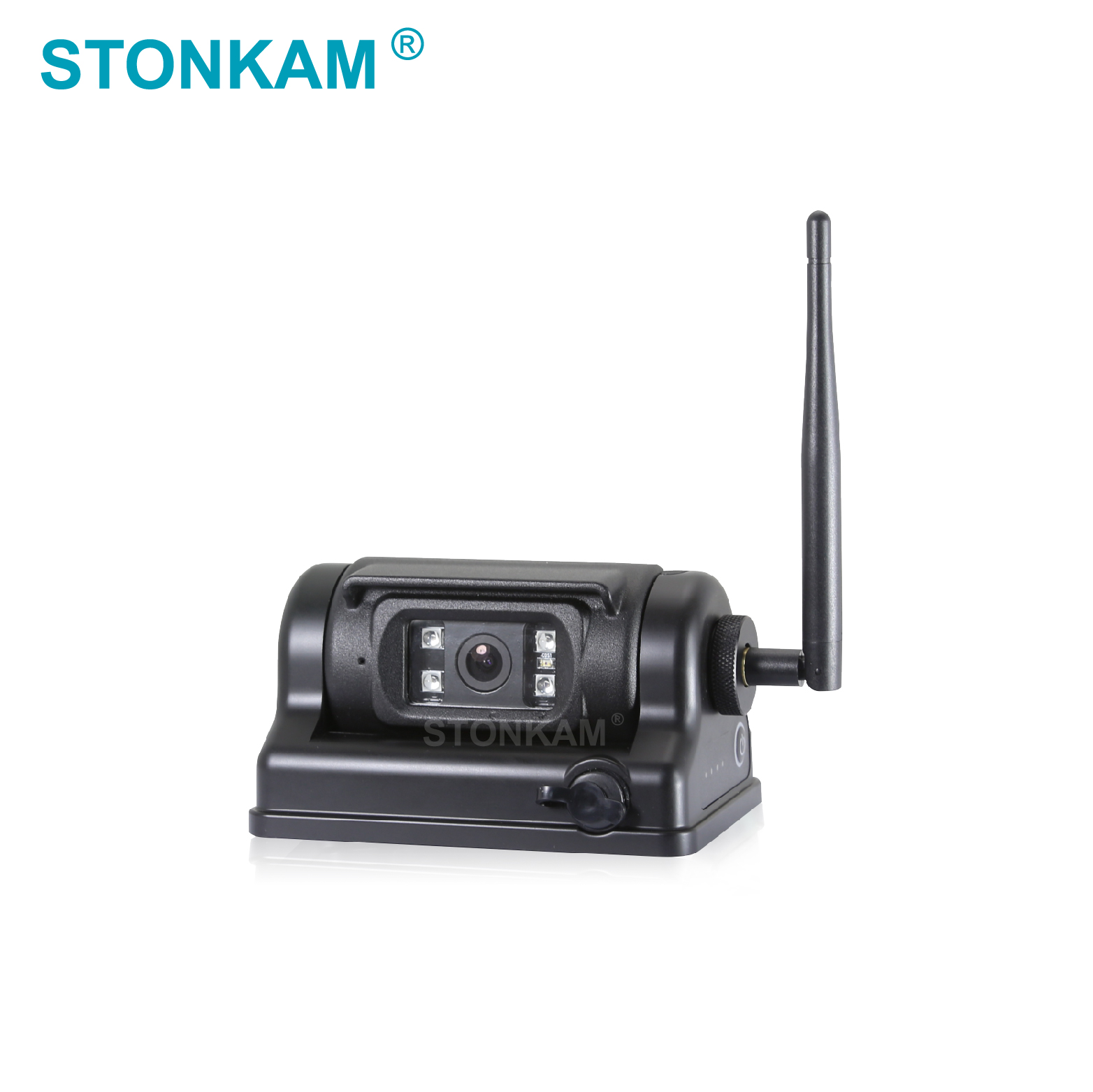

Wireless camera:

Battery Capacity 3.6V/6400mAh Charging Voltage 5V-12V Charging Time 5V/8H，12V/3H Charging Current 5V/1.5A(MAX)，12V/1.5A(MAX) Discharging Time 12H（daytime） 5H（night） Charging Temperature 0~+40℃ Discharging Temperature -20~+60℃ Storage Temperature -20~+60℃ Waterproof Rating IP69K Size 116 x 80 x 66（mm） Weight 670g Sensor 1/2.9” CMOS SENSOR Effective Pixels 1920 x 1080 pixels AGC Auto S/N Ratio 38dB White Balance Auto BLC Auto Operation Frequency 2403-2478MHZ Transmission Distance (barrier free) 300m(20dBm) Receiving sensitivity -78dBm Video Decode H.264 Transmission power 10dBm/20dBm Spread SPECTRUM FHSS Delay 170ms RF Bit Rate 12Mbps Minimum Illumination 0Lux Night Vision Distance 8-10m Audio Optional Viewing Angle 130° IR cut function Optional

What are the benefits of STONKAM® Waterproof 7 inch Digital Wireless Vehicle Monitor System?

Easy Installation + Instant Pairing = Save more money and efficiency

After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle.

Strong anti-interference, Stable connection

Operating frequency: 2400MHz ~ 2483.5MHz

STONKAM® wireless camera system adopts the FHSS technology to guarantee the privacy and anti-interference of connection.

Open transmission distance up to 984ft (300m)

IP66 rated waterproof, normal working in rainy days

IP66 Waterproof 7 inch wireless monitor can work continuously and stably under the condition of getting wet or soaking.With IP69K rating, our metal constructed cameras are durable and especially suits commercial and industrial vehicles.

Support multiple display modes, such as quad-view mode, split-view mode, single view mode.

The channels for the quad-view and split-view can be set flexibly.

Touch screen optional

With magnetic base, no drilling, no wiring, easy installation!
With magnet base, STONKAM HD Wireless Camera can be installed without drilling.

With rechargeable battery, it has up to 12 hours battery life, and has ultra-low standby power consumption
The rechargeable camera with battery has up to 12 hours battery life in the daytime, and can automatically stand by and wake up the monitor. When the standby power consumption is less than 0.01W, and it can save power without manual shutdown when not in use.

With IR-CUT function, night vision distance up to 10 meters
STONKAM 1080P Vehicle Wireless Rechargeable Camera can support IR-CUT, thoroughly solving the problem of color deviation of green plants under sunlight and ensuring clear recording; And the night vision distance is up to 10 meters, ensuring safe driving!

Waterproof and dust-proof rating is approved by IP69K certification, with great durance in harsh environment!

Applications

STONKAM® Digital Wireless Vehicle Monitor System can be applied to various vehicles by easy installation without running long cables.

For Truck:

For Harvester:

For Planter:
